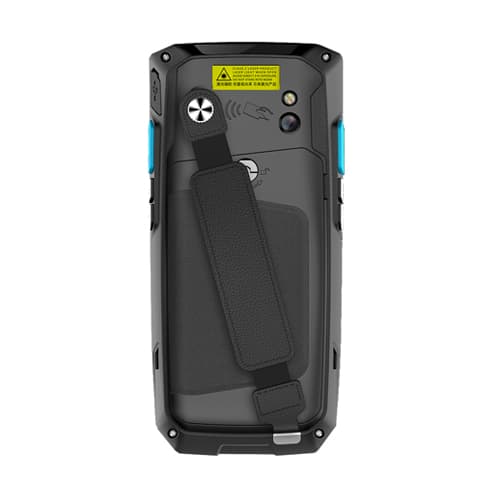

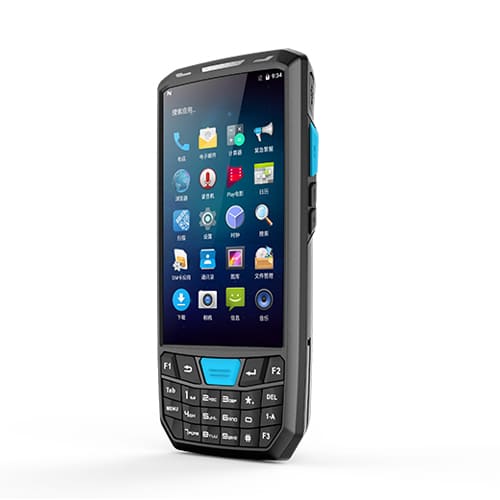

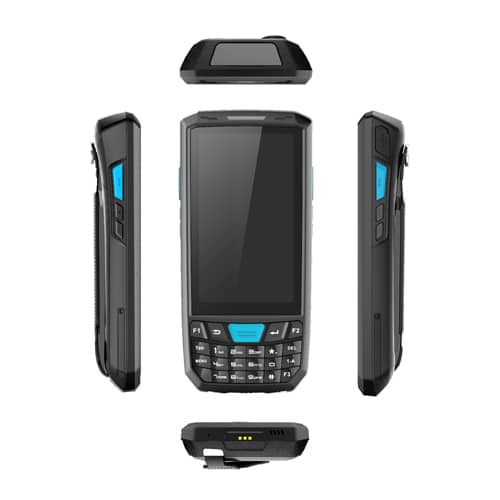

A80
IOT handheld Terminal
- 4.5-inch HD screen
- High-speed Quad – core
- Android 8.1 system
- 4G full Netcom
Performance
Quad core
| CPU | Cortex-A53 Quad core 64 bit 2.0 GHz high performance processor |
| RAM+ROM | 2GB+16GB |
| Expand memory | Micro SD(TF) Supports up to 128GB |
| System | Android 10.0 |
Data communication
| WLAN | Dual-band 2.4GHz / 5GHz, Supporting IEEE 802 a/b/g/n/ac protocol |
| WWAN |
2G：GSM（850/900/1800/1900MHz） 3G：WCDMA（850/900/1900/2100MHz） 4G：FDD:B1/B3/B4/B7/B8/B12/B20 TDD:B38/B39/B40/B41 |
| Bluetooth |
Support Bluetooth 5.0+BLE Transmission distance 5-10 meters |
| GNSS | Support Gps, Galileo, Glonass, Beidou |
Physical parameter
| Dimensions | 201.8mm×72mm×140mm（Including the handle） |
| Weight | ＜750g (Depends on device function configuration） |
| Display | 4.0 "color display with resolution 480×800 |
| TP | Support multi-touch |
| Battery capacity |
Rechargeable polymer battery (7.6V 3750mah) removable Standby time >350 hours Working time > 12 hours Charging time ＜3H, using standard poweradapter and data cable |
| Expansion Card slot | Nano SIM card x 2, TF card × 1 |
| Communication interface |
Type-C 2.0 USB x 1, supporting OTG function POGO Pin x 1 |
| Audio | Speaker (mono), Microphone, Receiver |
| Keypad | 38 soft and hard rubber buttons, left button x1, right button x1 |
| Sensors | Gravity sensor, light sensor, distance sensor, vibration motor |
Data collection
Barcode scanning (Optional)
| 2D Scanning engine | Honeywell N5703 |
| 1D Symbologies | Code128,EAN-13,EAN-8,Code39,UPC-A,UPCE, Codabar,Interleaved 2 of 5,China post 25,ISBN/ISSN, Code93,UCC/EAN-128,GS1 Databar,HIBC,etc. |
| 2D Symbologies | PDF417,Micro PDF417,GS1 Composite,Aztec Code,Data Matrix,QR Code,Micro QR Code,MaxiCode,Hanxin Code,etc. |
Camera (Standard）
| Rear camera |
800W pixel HD camera Support auto focus, Flash, Anti-shake, Macro |
| Shooting | Front camera 500W pixel color camera |
NFC (Optional)
| Frequency | 13.56MHz |
| Protocol | Support ISO14443A/B, 15693 agreement |
| Distance | 2cm-5cm |
Language/input method
| Input | English, Pinyin, Five strokes, Handwriting input, Support soft keypad |
| Language | Language packs in Simplified Chinese, Traditional Chinese, English, Korean, Japanese,Malaysian,etc. |
User environment
| Operating temperature | -20℃ - 55℃ |
| Storage temperature | -40℃ - 70℃ |
| Environment humidity | 5%RH--95%RH(no condensation) |
| Drop specification | 6 sides supports 1.2 meters drops on the marble within the operating temperature |
| Rolling test | 0.5m rolling for 6 sides, can still work steadily |
| Sealing | IP66 |
Accessories
| Standard | Adapter, Data cable, Protective film, Instruction manual |
