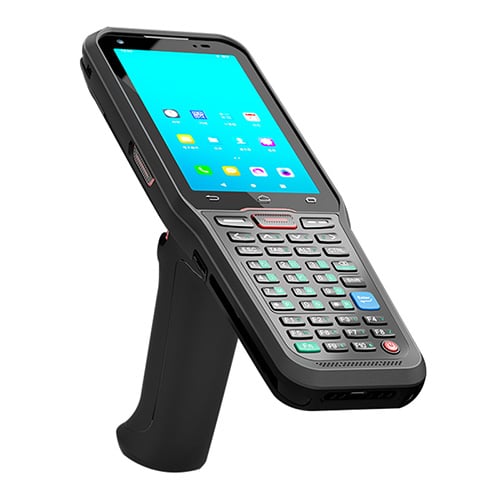

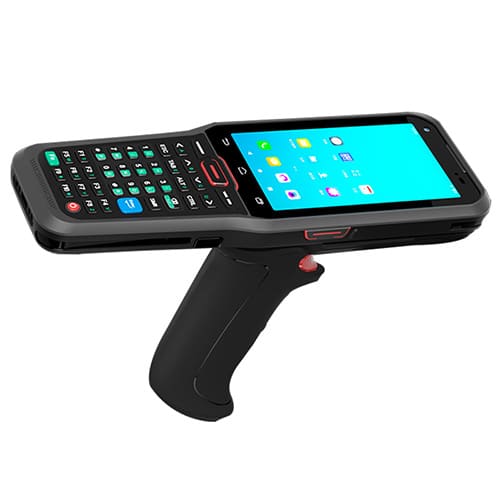

A92 IOT handheld Terminal

IOT handheld Terminal

  • 4.0-inch HD Screen
  • Android 10.0 system
  • 4G full Netcom

Product parameters


Quad core

CPU Cortex-A53 Quad core 64 bit 2.0 GHz high performance processor
Expand memory Micro SD(TF) Supports up to 128GB
System Android 10.0

Data communication

WLAN Dual-band 2.4GHz / 5GHz, Supporting IEEE 802 a/b/g/n/ac protocol
WWAN 2G:GSM(850/900/1800/1900MHz)
Bluetooth Support Bluetooth 5.0+BLE
Transmission distance 5-10 meters
GNSS Support Gps, Galileo, Glonass, Beidou

Physical parameter

Dimensions 201.8mm×72mm×140mm(Including the handle)
Weight <750g (Depends on device function configuration)
Display 4.0 "color display with resolution 480×800
TP Support multi-touch
Battery capacity Rechargeable polymer battery (7.6V 3750mah) removable
Standby time >350 hours
Working time > 12 hours
Charging time <3H, using standard power adapter and data cable
Expansion Card slot Nano SIM card x 2, TF card × 1
Communication interface Type-C 2.0 USB x 1, supporting OTG function
POGO Pin x 1
Audio Speaker (mono), Microphone, Receiver
Keypad 38 soft and hard rubber buttons, left button x1, right button x1
Sensors Gravity sensor, light sensor, distance sensor, vibration motor

Data collection

Barcode scanning (Optional)

2D Scanning engine Honeywell N5703
1D Symbologies Code128,EAN-13,EAN-8,Code39,UPC-A,UPCE, Codabar,Interleaved 2 of 5,China post 25,ISBN/ISSN, Code93,UCC/EAN-128,GS1 Databar,HIBC,etc.
2D Symbologies PDF417,Micro PDF417,GS1 Composite,Aztec Code,Data Matrix,QR Code,Micro QR Code,MaxiCode,Hanxin Code,etc.

Camera (Standard)

Rear camera 800W pixel HD camera Support auto focus, Flash, Anti-shake, Macro shooting
Front camera 500W pixel color camera

NFC (Optional)

Frequency 13.56MHz
Protocol Support ISO14443A/B, 15693 agreement
Distance 2cm-5cm

Language/input method

Input English, Pinyin, Five strokes, Handwriting input, Support soft keypad
Language Language packs in Simplified Chinese, Traditional Chinese, English, Korean, Japanese,Malaysian,etc.

User environment

Operating temperature -20℃ - 55℃
Storage temperature -40℃ - 70℃
Environment humidity 5%RH--95%RH(no condensation)
Drop specification 6 sides supports 1.2 meters drops on the marble within the operating temperature
Rolling test 0.5m rolling for 6 sides, can still work steadily
Sealing IP66


Standard Adapter, Data cable, Protective film, Instruction manual
