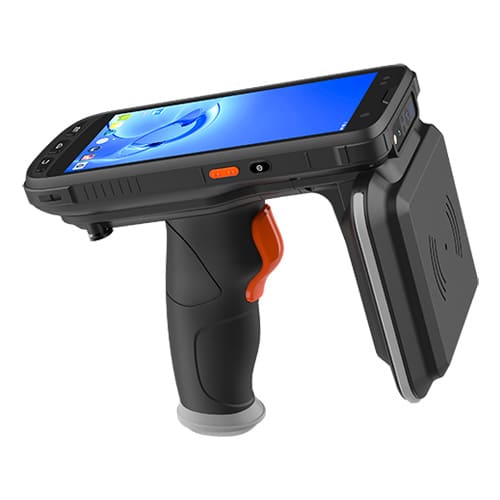

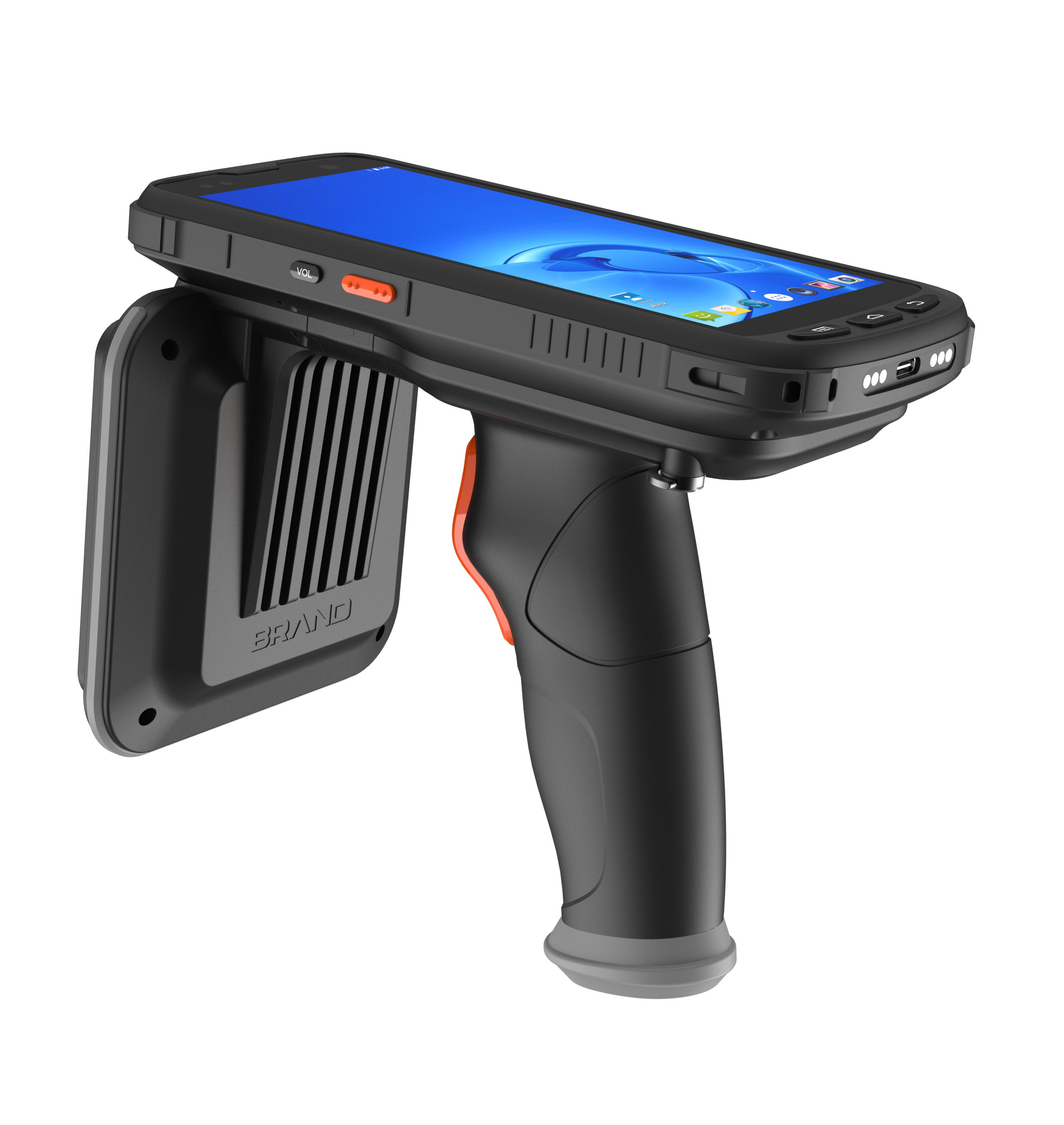

AH3 Android Mobile Computer

Android Mobile Computer

Industrial and Humanized Hardware Design

Industrial & humanized keypad design and tough 5.5 inch Gorilla Glass 3 touch screen together with high resolution of 720*1440 display shall match high standards in logistics, express and retail.

Octa-Core Processor & Large Memory

Android 10.0 OS with memory of 2GB RAM/16GB ROM or 4GB RAM/64GB ROM shall provide the highly standard experience

Superior Data Communication and Security Guarantee

Double insurance of 4G &WIFI network and highly secured Android 10.0 system shall provide the high speed data
communication and perfect security guarantee;

Specifications

Physical Characteristics

Dimension 166mm(H)x79mm(W)x31mm(D)±2 mm (Not including the shield and pistol grip)
Weight Net Weight :600g (including battery&wrist strap)
Display Gorilla Glass 3 9H 5.5 in. TFT-LCD (720x1440)touch screen with backlight
Backlight LED backlight
Expansions 1 PSAM, 1 SIM, 1 TF
Battery Rechargeable li-ion polymer 3.8V 9000mah

Perfomance Characteristics

CPU Cortex A73 2.0GHz octa-core
Operating System Android 10.0
Storage 2GB RAM/16GB ROM or 4GB RAM/64GB
ROM MicroSD(max 256GB expansion)

User Environment

Operating Temp -20℃ to 50℃
Storage Temp -20℃ to 70℃
Humidity 5%RH to 95%RH(non-condensing)
Drop Specifications 5ft./1.5 m drop to concrete across the operating temperature range
Sealing IP65, IEC compliance
ESD ±15kv air discharge, ±8kv direct discharge

Development Environment

SDK Handheld-Wireless Software Development Kit
Language Java
Environment Android Studio or Eclipse

Data Communication

WWAN TDD-LTE Band 38, 39, 40, 41;
FDD-LTE Band 1, 2, 3, 4, 7, 17, 20;
WCDMA(850/1900/2100MHz);
GSM/GPRS/Edge (850/900/1800/1900MHz
WLAN 2.4GHz/5.0GHz Dual Frequency, IEEE 802.11 a/b/g/n/ac
WPAN Bluetooth Class v2.1+EDR, Bluetooth v3.0+HS, Bluetooth v4.2
GPS GPS(embedded A-GPS), accuracy of 5m

Data Captuer

Barcode Reader(Optional)

2D barcode

2D CMOS Imager Zebra SE4710/MindeoME5600/Others
Symbologies PDF 417 , Micro PDF 417 Composite, RSS, TLC-39 Data matrix, QR code Micro QR code, Aztec, Maxi Code, Postal Codes , US PostNet, US Planet, UK Postal, Australian Postal , Japan Postal Dutch Postal. etc.

Color Camera

Resolution Rear 13 megapixel, front 5.0 megapixel
Lens Auto-focus with LED flash

RFID Reader(Optional)

NFC
Frequency 13.56MHz
Protocol ISO 14443A&15693, NFC-IP1, NFC-IP2
R/W Range 5cm to 8cm
UHF
Frequency 865~868MHz or 920~925MHz
Protocol EPC C1 GEN2
R/W Range 0 m to10.0 m(tags and environment dependent)
Antenna Gain Circular antenna(3dBi)

Accessories

Standard 1xPower Supply; 1xLithium Polymer Battery 1x Type-C cable
Optional Cradle
